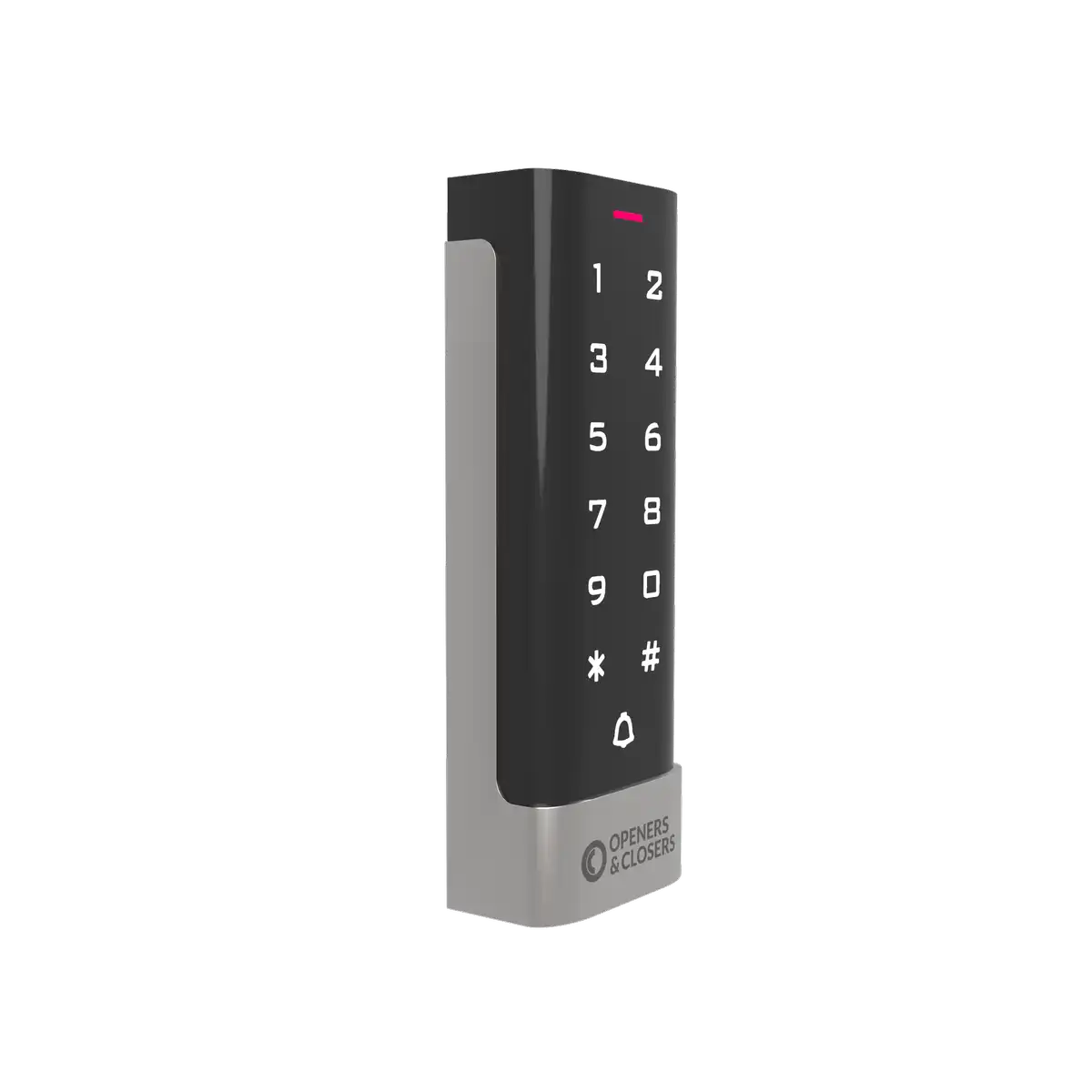

Coded Keypad

AC220 Instruction Manual

AC220
Important information

Read before installation or use

Top

Read Before Installing or Using This Device

This device has been designed for integration into professional access control systems in residential, commercial, or industrial buildings. It must only be installed and handled by qualified technical personnel, in accordance with the manufacturer's specifications. Improper use, unauthorised handling, or incorrect installation may cause serious harm to persons or property, and will void both the warranty and the manufacturer's liability.

Electrical Safety

Before connecting, disconnecting, or intervening with the device, ensure the power supply is completely switched off. Although this product operates at low voltage (e.g. 12–24 VDC), improper handling can cause short circuits, door damage, overheating, or risk of electric shock.

Intended Use and Compatibility

This device is suitable for wooden, metal, or aluminium doors, depending on the model. Certain models are certified for use on fire doors and emergency exits. Always verify the specific certifications and compatibility before installation. Use in environments exposed to water, heavy dust, or aggressive chemical agents is not recommended unless the device is properly certified (e.g. IP65, IP68 etc.).

Maintenance and Use

Do not open, modify, or tamper with the interior of the device. Any unauthorised intervention will automatically void the warranty. Cleaning should be carried out using soft cloths and non-abrasive products. Periodic maintenance by a qualified technician is recommended, particularly in high-usage environments.

Limited Warranty

This product is covered by a commercial warranty against manufacturing defects for the period specified by Openers & Closers. The warranty does not cover normal wear and tear, incorrect installation, tampering, mechanical impacts, or unsuitable environmental conditions. Openers & Closers shall not be held liable for indirect damage, financial loss, or harm resulting from improper or non-compliant use.

Regulations and Compliance

This product complies, where applicable, with relevant regulations in each market (e.g. CE, RoHS, WEEE, UL 294, NFPA-80, EN 14846). Refer to the product labelling and technical documentation to confirm specific certifications.

Disposal and Recycling

This device contains electronic components and must not be disposed of with household waste. It must be taken to an authorised collection point for electrical and electronic equipment (WEEE). The crossed-out wheeled bin symbol indicates this legal requirement. The packaging is recyclable and should be disposed of in accordance with local regulations.

Intellectual Property and Documentation

The content of this manual, as well as the technology integrated into the product, is protected by intellectual and industrial property rights. Its reproduction, distribution, translation, or modification is prohibited without the express authorisation of Openers & Closers.

Technical Data and Dimensions

Dimensions

Top
Dimensions
Installation

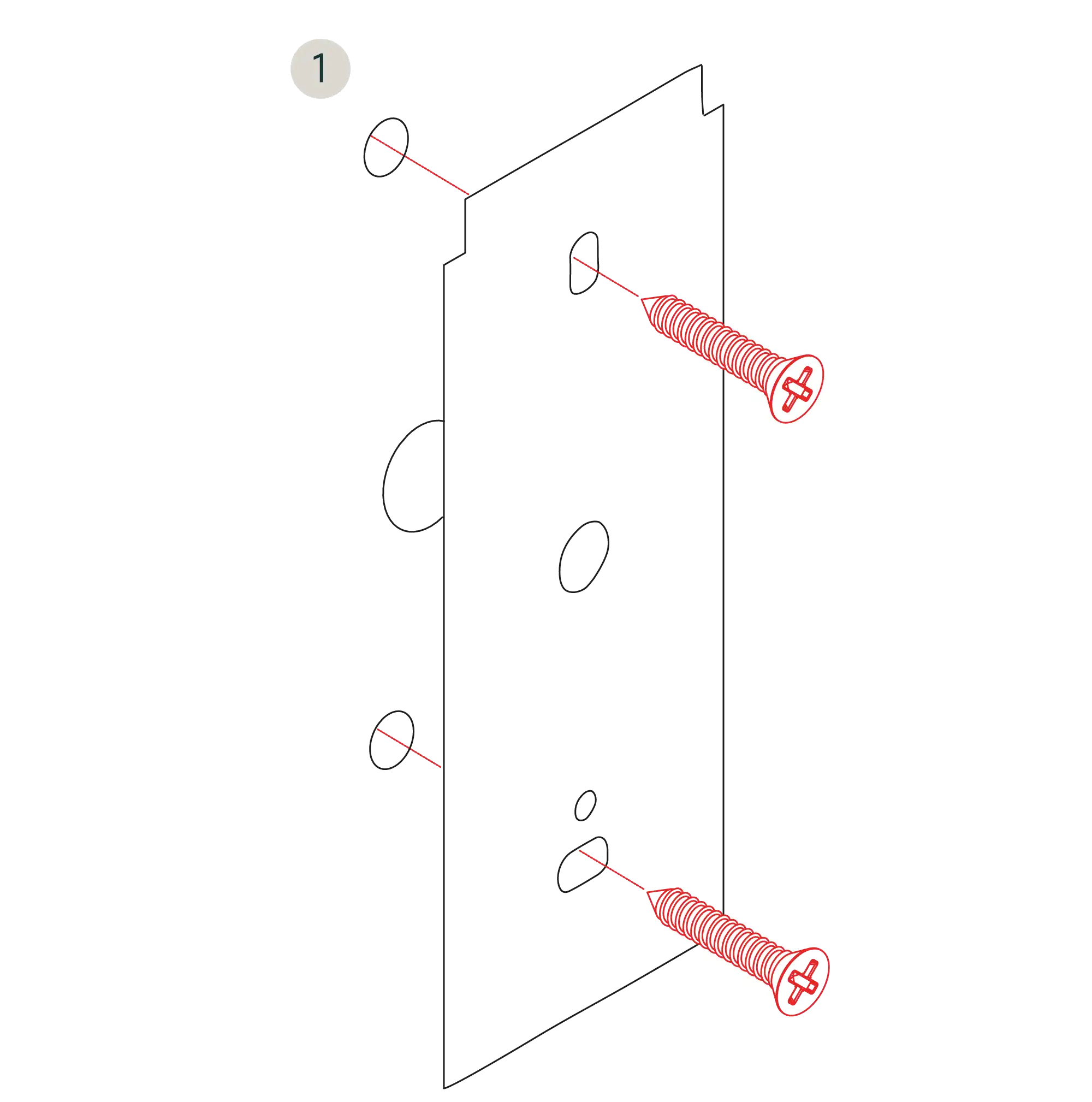

Installation

Top
Installation
Installation
Connections

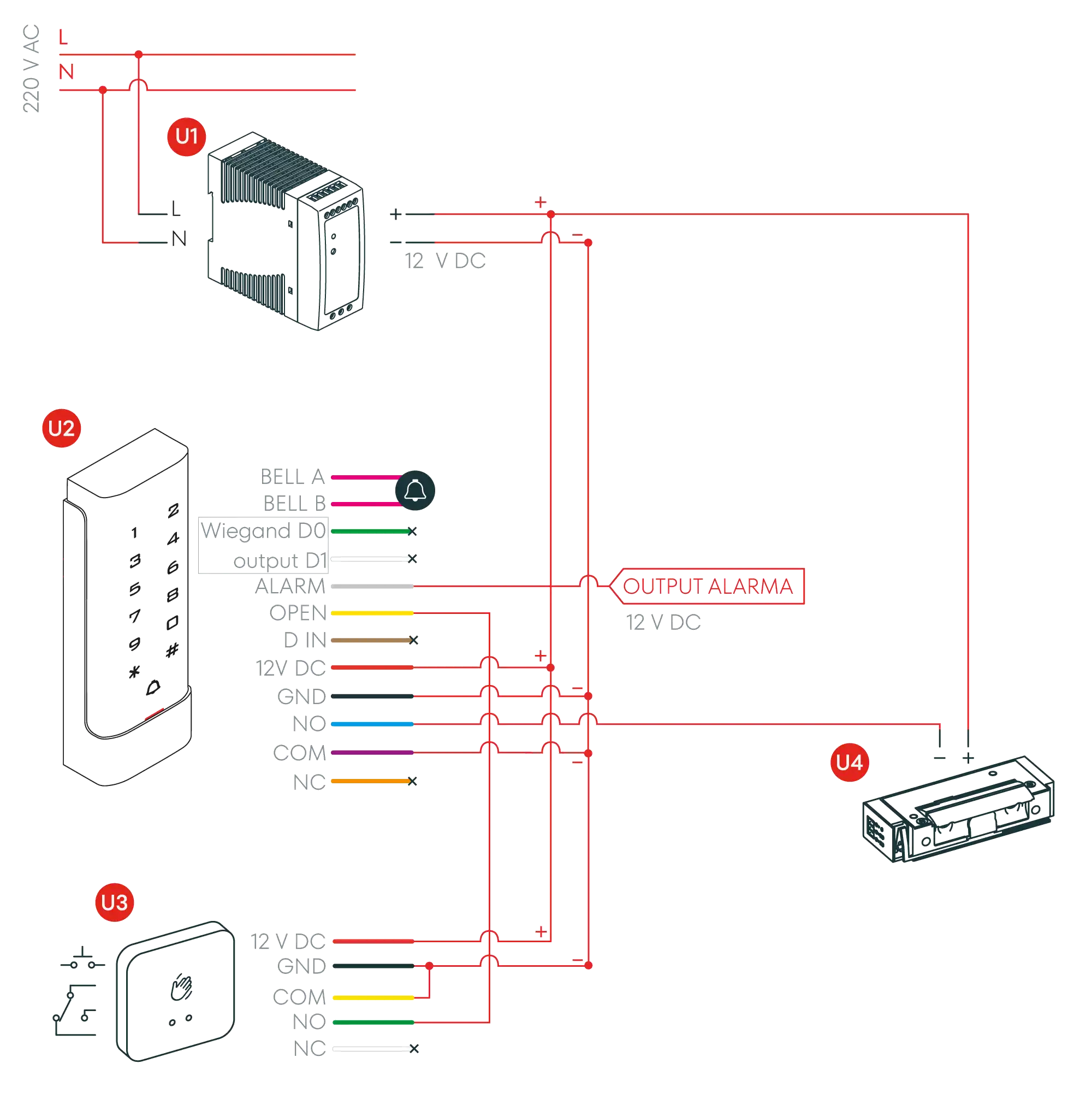

Connection diagram (Option 1)

Top
  • U1
    Power supply
  • U2
    AC220 Keyboard
  • U3
    Pushbutton (TP Series)
  • U4
    Electric/Electronic Door Strike Option (Series 1,3,5,8 and 9)
Connection diagram (Option 1)
Connections

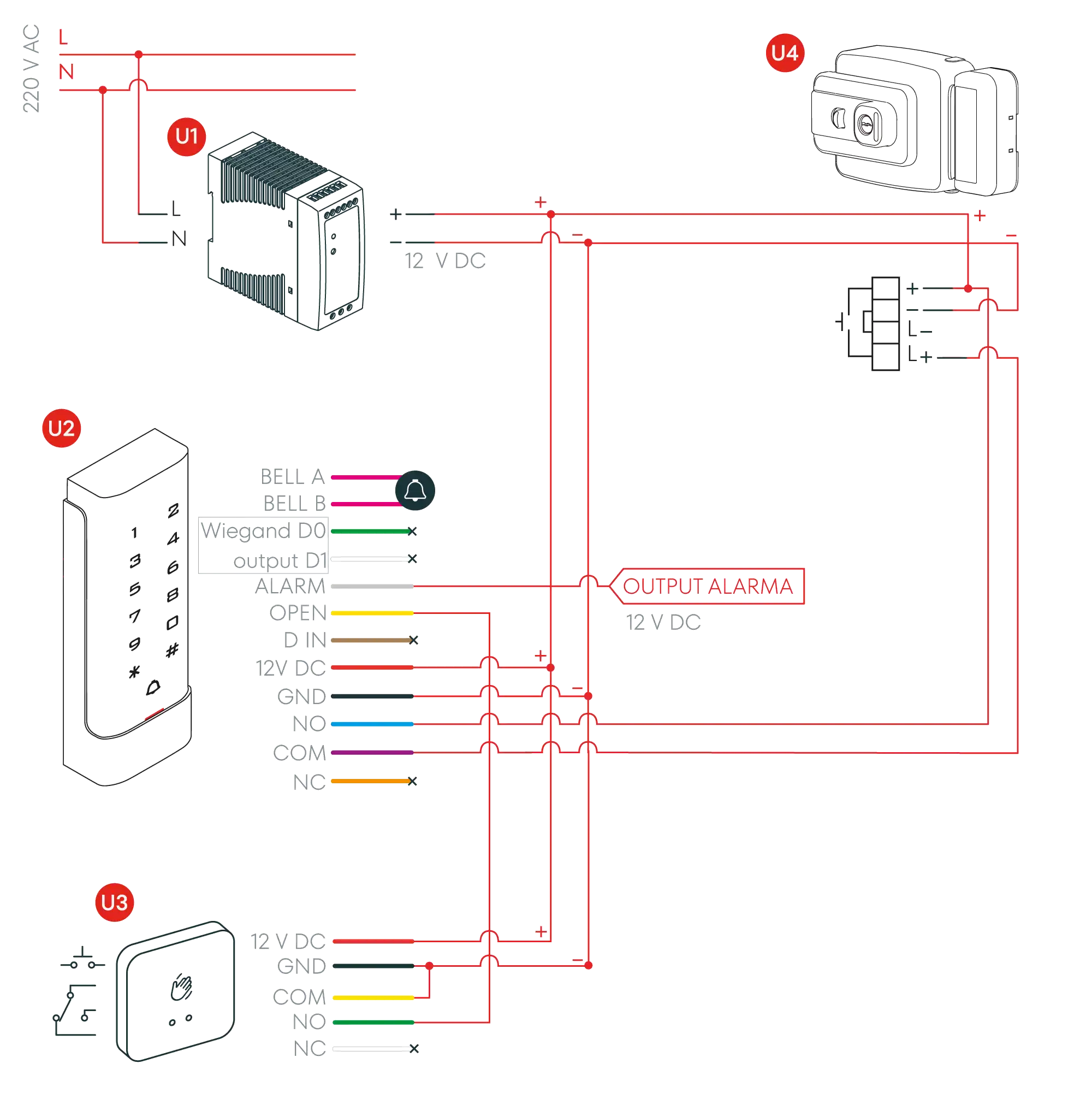

Connection diagram (Option 2)

Top
  • U1
    Power supply
  • U2
    AC220 Keyboard
  • U3
    Pushbutton (TP Series)
  • U4
    Electromechanical Lock (CE Series)
Connection diagram (Option 2)
Connections

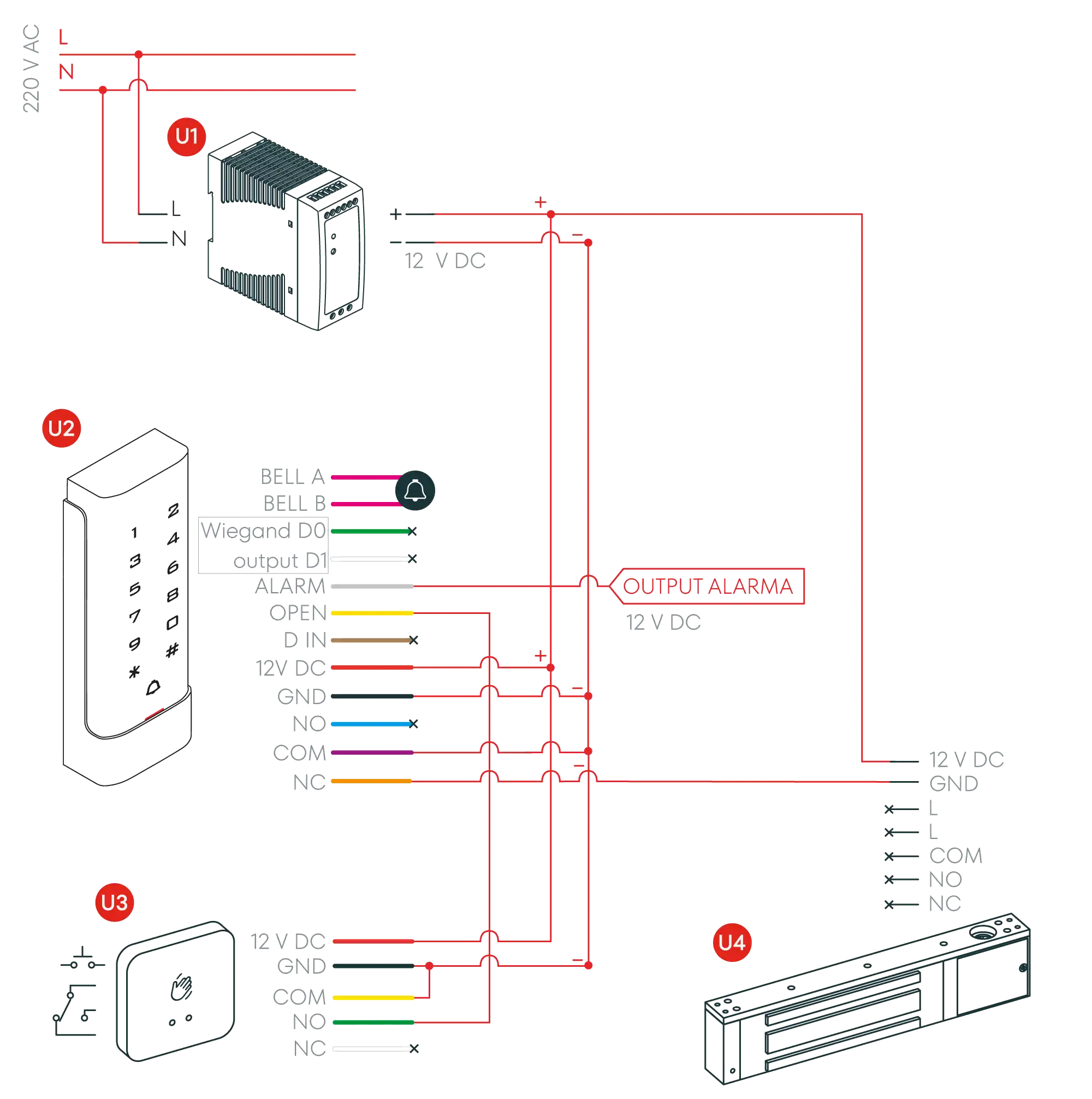

Connection diagram (Option 3)

Top
  • U1
    Power supply
  • U2
    AC220 Keyboard
  • U3
    Pushbutton (TP Series)
  • U4
    Electromagnetic Door Strike Option (ME, MEX Series)
Connection diagram (Option 3)
Usage

User Guide

Top

Visual and audible indications

STATERED LIGHTGREEN LIGHTLOUDSPEAKER
Stand byActive--
Button pressed--1 beep
Successful operation-Active1 beep
Failed operation--3 beep
Entering programming modeBlinking--
Door opening-Active1 beep
Settings and Configuration

Programming: User Configuration

Top
ActionCommand
Enter programming mode[*] [Master Code] [#]. (Note: the master code by default is 999999)
Exit programming mode[*]

Note that to carry out the following programming, the master user (programming mode) must log in.

ActionCommand
Change the master code[0] [New Code] [#] [New Code] [#] (Note: The master code must be 6 to 8 digits.)
Select a working mode (Without possibility to combine method options)[3][0][#] Card users only [3][1][#] Card + PIN users [3][2][#] Card or PIN user (EXAMPLE: [*]999999[#]31[#][*])

Add card or PIN users in mode ( [3] [2] [#] )

ActionCommand
Add a user with PIN[1] [ID Number] [#] [PIN] [#] (Note: The ID Number can be any number between 1-2000. The PIN can be any 4-digit number between 0000-9999 except for 1234 which is reserved. More than one user can be added without exiting programming mode:)
[1] [ID Number 1] [#] [PIN] [#] [ID Number 2] [#] [PIN] [#]
Delete a PIN user[2] [ID Number] [#] (Note: Users can be deleted one after another without exiting programming mode.)
Change a PIN user's PIN: (This step should be performed outside programming mode)[*] [ID Number] [#] [Old PIN] [#] [New PIN] [#] [New PIN] [#]
Add Card User (Method 1) (Note: This is the fastest method to input cards as it auto-generates the ID):[1] [Card Read] [#] (Note: Cards can be added one after another without exiting programming mode.)
Add Card User (Method 2): (Note: This is an alternative way to add cards by assigning an identifier.)[1] [ID Number] [#] [Card Read] [#] (Note: Cards can be added one after another without exiting programming mode.)
Add Card User (Method 3): (Note: The card number is the last 8 digits printed on its back. It auto-generates the ID.)[1] [Card Number] [#] (Note: Cards can be added one after another without exiting programming mode.)
Delete a Card user using card[2] [Card Read] [#] (Note: Users can be deleted one after another without exiting programming mode.)
Delete a Card user by User ID[2] [ID Number] [#]
Delete a Card user by Card Number:[2] [Card Number] [#]

Add Card and PIN users in mode ( [3] [1] [#] )

ActionCommand
Add a Card + PIN user: (Note: The PIN can be any 4-digit number between 0000-9999.)Add card as card user. Press [*] to exit programming mode. [*] [Card Read] [PIN] [#] [PIN] [#]
Change a PIN in Card + PIN mode (method 1)[*] [Card Read] [Old PIN] [#] [New PIN] [#] [New PIN] [#] Note: This can be performed outside programming mode so the user can change their PIN.
Change a PIN in Card + PIN mode (method 2)[*] [ID Number] [Old PIN] [#] [New PIN] [#] [New PIN] [#] Note: This can be performed outside programming mode so the user can change their PIN.
Delete a Card + PIN user (only delete the card):[2] [ID Number] [#]

Add a Card user in mode ( [3] [0] [#] )

ActionCommand
Add and delete a Card userThe operation is the same as in mode [3] [2] [#]

Delete ALL users

ActionCommand
Delete ALL users (This is a dangerous operation, use with caution.)[2] [0][0][0][0] [#]

Unlock door

ActionCommand
PIN UserEnter the [PIN] and press [#]
Card UserPresent the card
Card + PIN UserPresent the card, enter the [PIN] and press [#]
Settings and Configuration

Detailed programming guide: Door configuration

Top

Door relay opening time

ActionCommand
Set the relay activation time[*] [Master Code] [#] [4] [0-99] [#] [*] Note: 0-99 seconds is the adjustable time range.
When an optional or built-in magnetic contact is used in the lock, if the door opens normally but does not close after 1 minute, the buzzer will emit an automatic beep to remind of the door closing. If the door is forced open, the internal buzzer and the alarm output will activate simultaneously. The alarm output time is adjustable between 0-3 minutes. The default is set to 1 minute.

Open door detection

ActionCommand
Disable open door detection: (Default state)In Programming Mode - [6] [0] [#]
Enable open door detection: Set alarm time (next page)In Programming Mode - [6] [1] [#]

Alarm output time

ActionCommand
Set the alarm time between 0-3 minutes:In Programming Mode - [5] [0-3] [#]
If within a period of 10 minutes, 10 invalid cards or 10 incorrect PIN numbers are detected, the buzzer will operate for 10 minutes, depending on the option selected below.

Keypad lock and alarm options

ActionCommand
Normal state: No keypad lock or alarm (default state)In Programming Mode - [7] [0] [#]
Keypad lockedIn Programming Mode - [7] [1] [#]
Alarm and internal buzzer activeIn Programming Mode - [7] [2] [#]

Reset the alarm

ActionCommand
Reset the alarm for forced doorPresent a valid card or enter [Master Code][#]
Reset the alarm for door open too long:Close the door, present a valid card or enter [Master Code][#]

Connect AC220 to wifi

ActionCommand
Connect AC220 to wifi[*] [Master] [#] 73 [#]
